SAFİR

OVERVIEW

SAFİR has a thrust of 6 kg per motor and a payload capacity of 5 kg. It can perform flights lasting up to 10 minutes. Our vehicle is capable of carrying out its missions fully autonomously and features a locally developed control system. The control design was produced by our mechanical and electronics team.

TECHNICAL SPECIFICATIONS

TAKEOFF WEIGHT 5 kg
CRUISE SPEED 14 m/s
FLIGHT TIME 10 dk
ALTITUDE RANGE 30-120 m
BATTERY 5200 mAh
TAKEOFF/LANDING AUTONOMOUS

HARDWARE SPECIFICATIONS

FLIGHT COMPUTER PIXHAWK CUBE BLACK
MISSION COMPUTER NVIDIA JETSON NANO 4GB
GPS PIXHAWK HERE3 GPS
CAMERA PI KAMERA v2.1
MOTOR HOBBYWING XROTOR PRO X8
BATTERY LEOPARD 6S 5200 mAh LİPO
RADIO TELEMETRY RFD900X

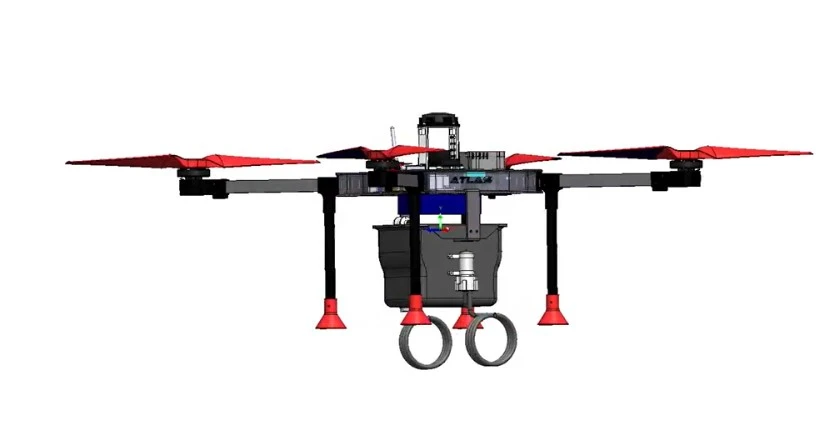

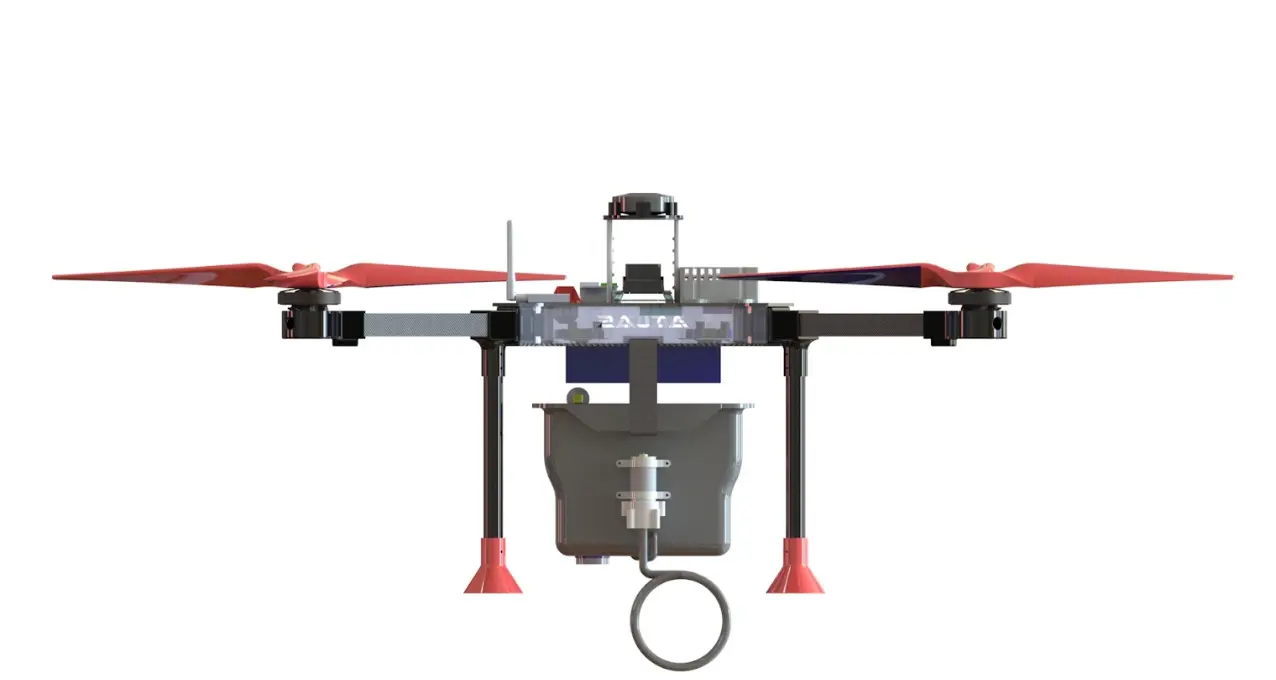

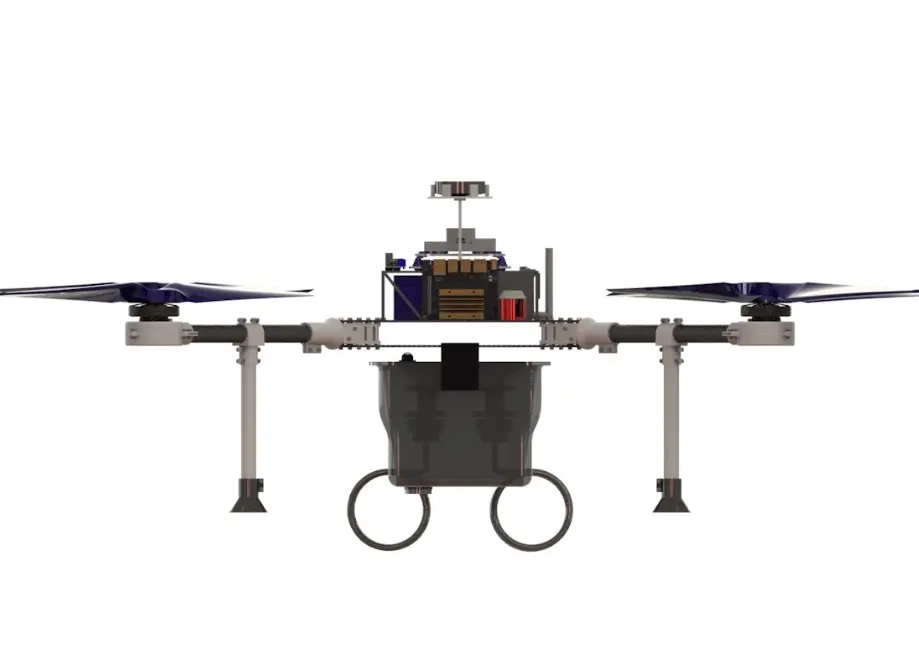

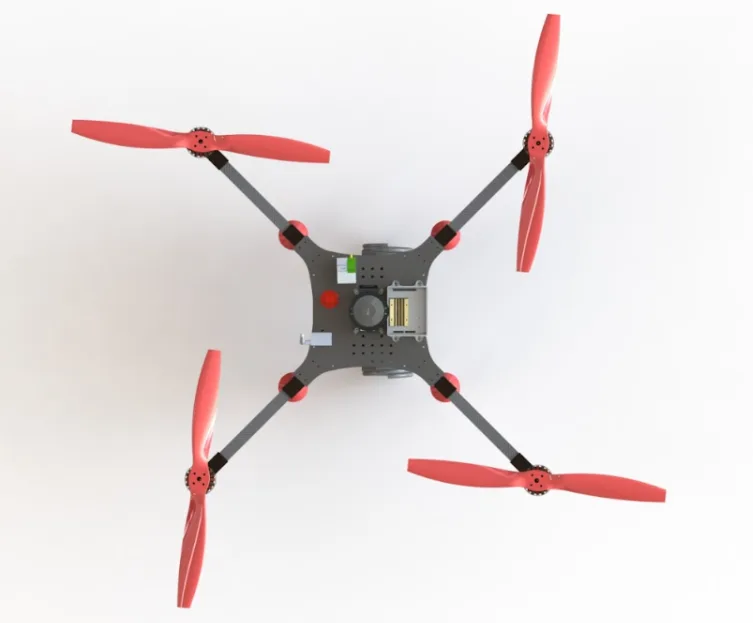

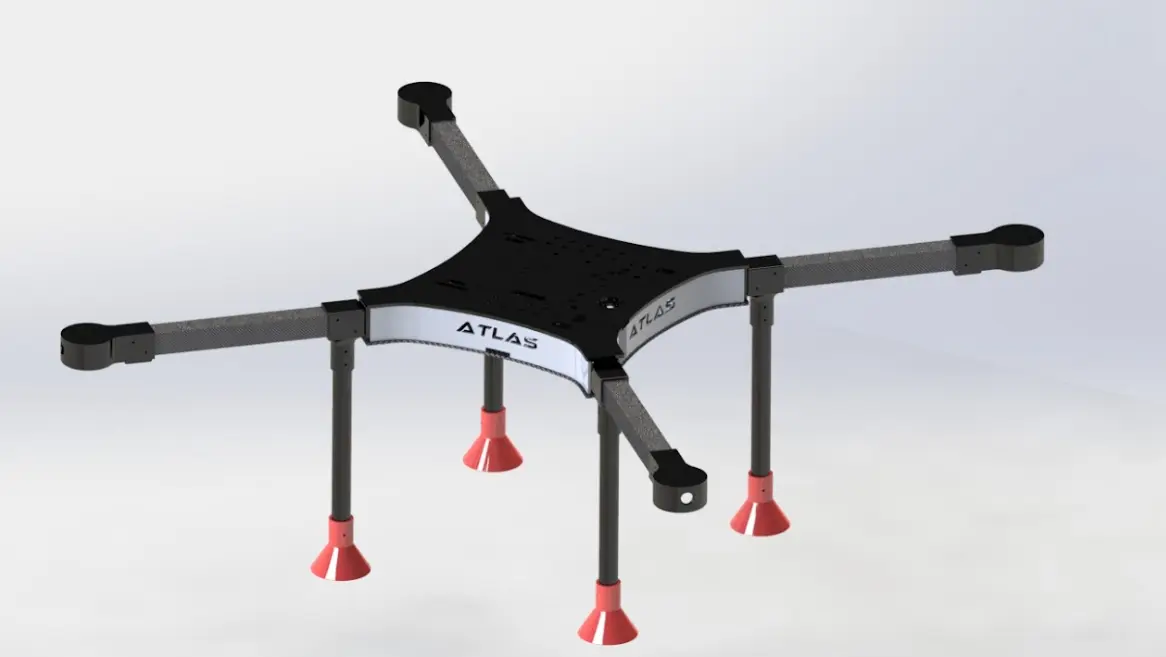

TECHNICAL DRAWINGS AND 3D MODELS
