POYRAZ
POYRAZ
OVERVIEW

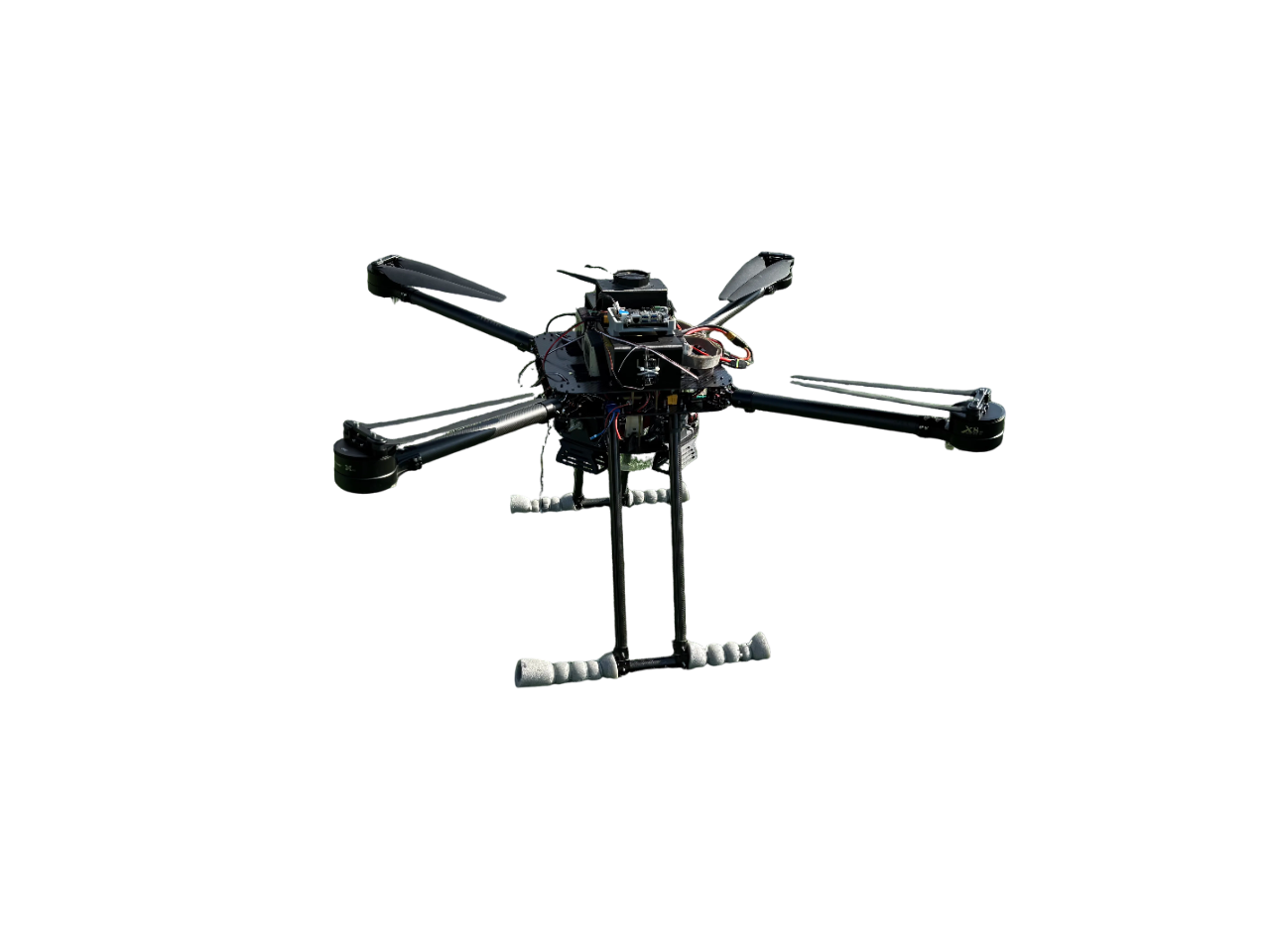

Poyraz is our rotary-wing unmanned aerial vehicle, specially developed for the SUAS Competition in 2025. With its payload delivery system, precision flight capability, and AI-powered object detection feature, it makes a difference in missions. Its design and functionality showcase our team’s engineering expertise.
TECHNICAL SPECIFICATIONS
- TAKEOFF WEIGHT 19 kg
- FLIGHT CRUISE SPEED 20 m/s
- FLIGHT TIME 37 minutes
- ALTITUDE RANGE 30-120 m
- BATTERY 40000 mAh
- TAKEOFF/LANDING AUTONOMOUS
HARDWARE SPECIFICATIONS
- FLIGHT COMPUTER PIXHAWK CUBE ORANGE+
- MISSION COMPUTER NVIDIA JETSON ORIN NX 16GB
- GPS PIXHAWK HERE3+ GPS
- CAMERA RASPBERRY PI HQ + 16mm LENS
- MOTOR HOBBYWING XROTOR PRO X8
- BATTERY TATTU 40000mAh 22.2V 6S 30C LIPO
- RADIO TELEMETRYI RFD900X
- LIDAR SLAMTECH RPLidar A2M12
TECHNICAL DRAWINGS AND 3D MODELS
