GÖLGE

OVERVIEW

Gölge, which we developed in 2024 for the International Teknofest Competition, is an unmanned ground vehicle designed to perform reconnaissance and mapping in enemy territories. Its mission is to traverse a designated area, collect all critical environmental data, process this data into a detailed map, and transmit it to the interface in real time.

Mapping

Travels through enemy territory to perform detailed mapping.

Data Transmission

Transmits the created maps to the interface in real time.

Reconnaissance

Infiltrates enemy areas to detect threats and identify key points in the surroundings.

Live Video Transmission

Transmits real-time video footage, allowing operators to remotely monitor enemy territory.

TECHINCAL SPECIFICATIONS

TAKEOFF WEIGHT 7 kg
FLIGHT CRUISE SPEED 20 m/s
FLIGHT TIME 37 minutes
ALTITUDE RANGE 30-120 m
BATTERY 8000 mAh
TAKEOFF/LANDING AUTONOMOUS

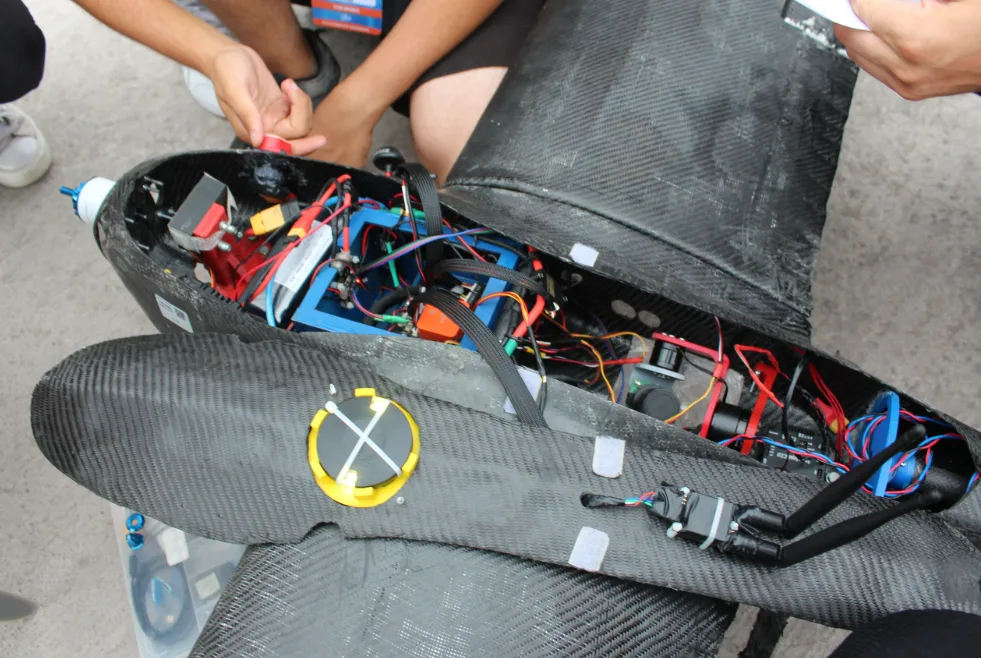

HARDWARE SPECIFICATIONS

FLIGHT COMPUTER PIXHAWK CUBE ORANGE
MISSION COMPUTER NVIDIA JETSON NANO
GPS PIXHAWK HERE3+ GPS
CAMERA RASPBERRY PI HQ + 6mm LENS
MOTOR SUNNYSKY X4120
BATTERY LEOPARD-POWER 8000mAh 22.2V 3S 70C LIPO
RADIO TELEMETRY RFD900
RADIO CONTROLLER FLYSKY FS-I6X
LIDAR GARMIN LIDAR LİTE V3

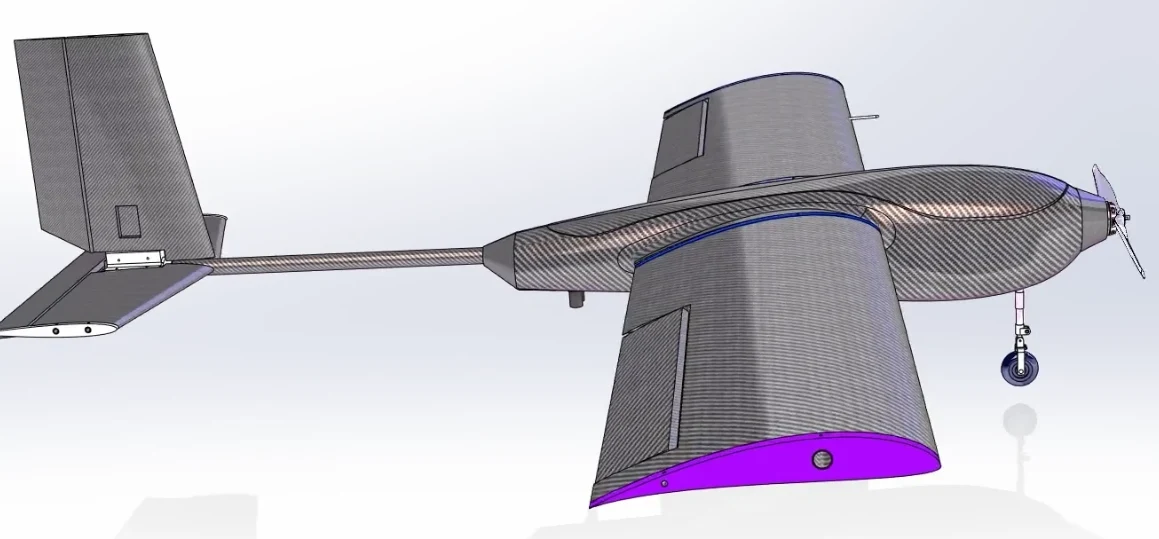

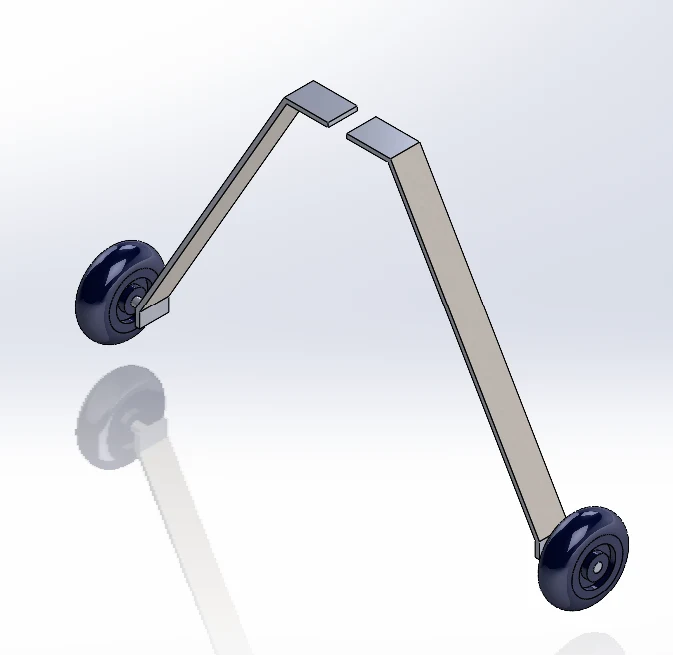

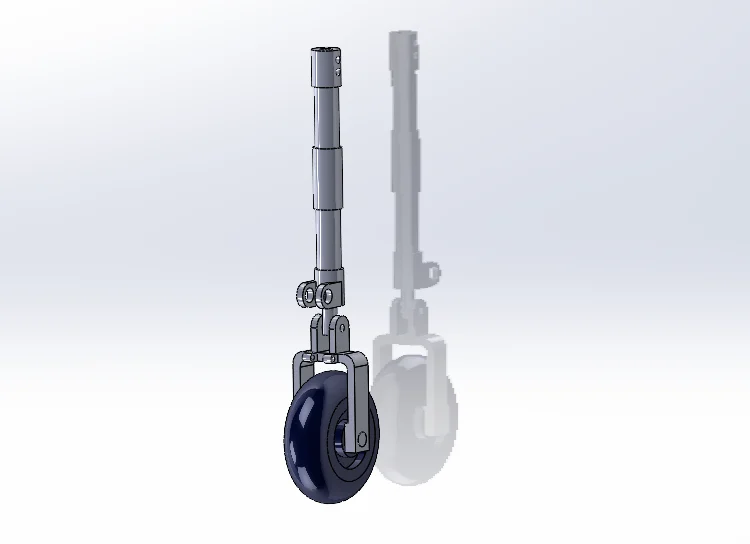

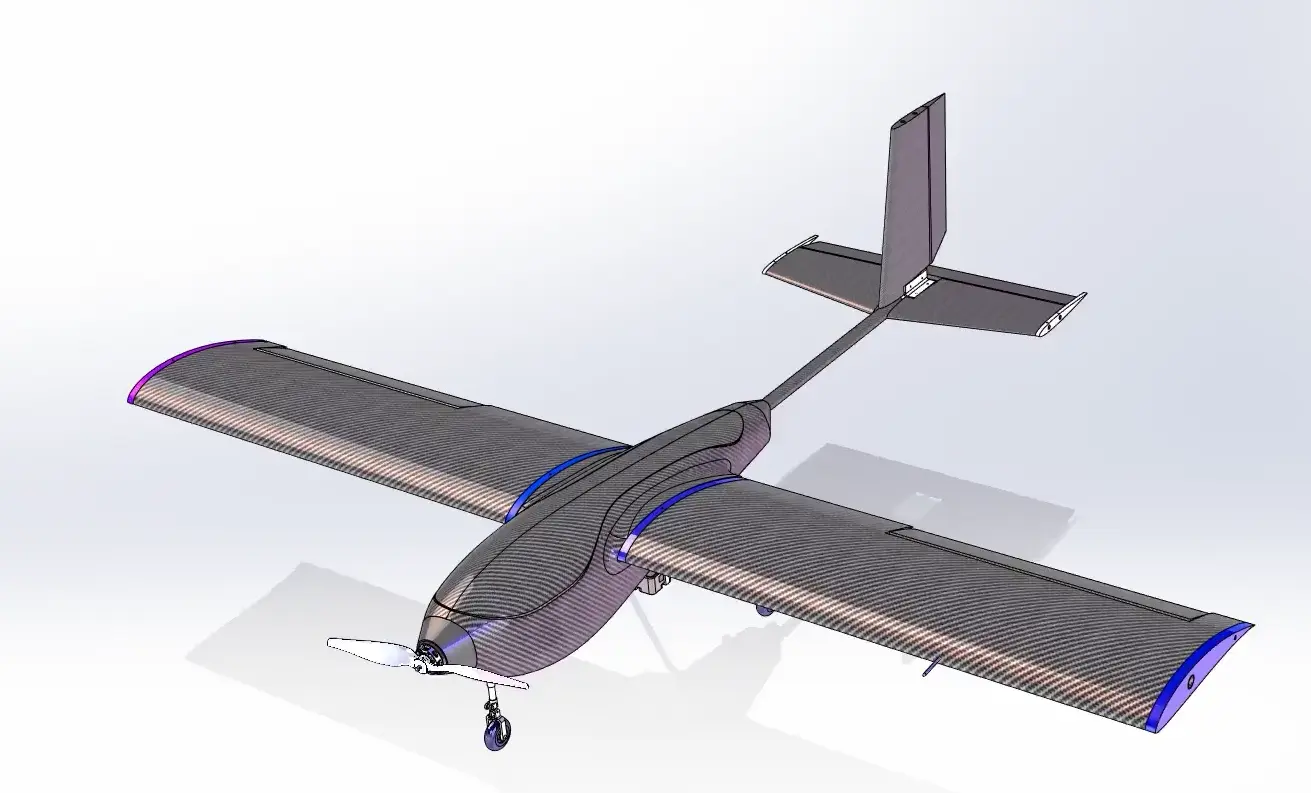

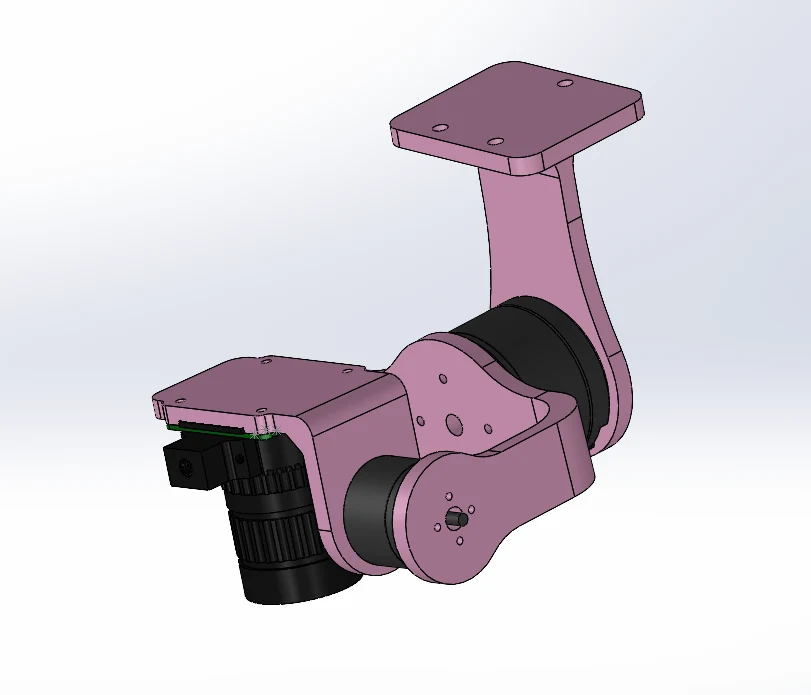

TECHNICAL DRAWINGS AND 3D MODELS
