FIRTINA

FIRTINA
OVERVIEW

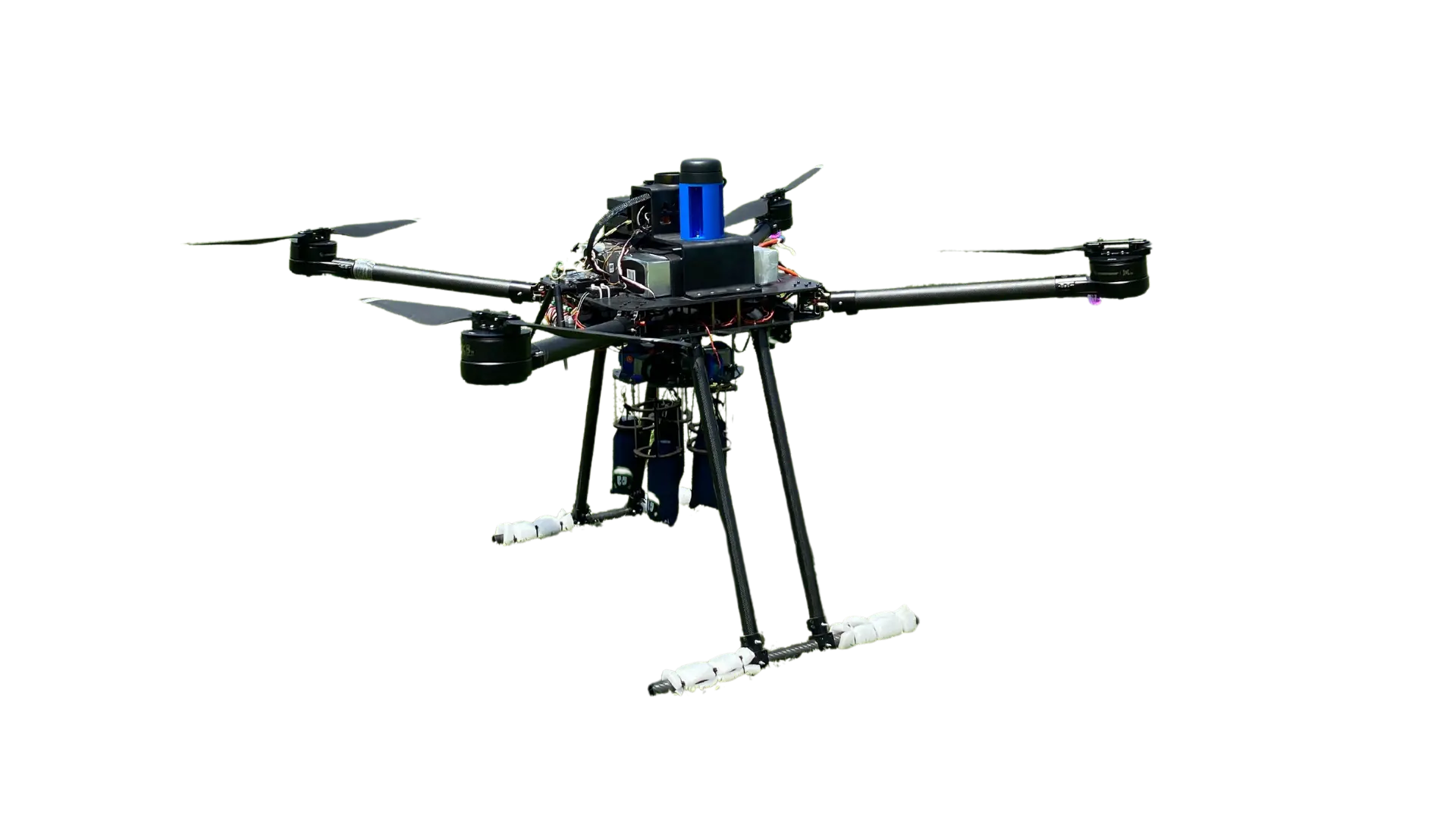

Fırtına is our rotary-wing unmanned aerial vehicle (UAV) developed in 2024 for the SUAS Competition and the International TEKNOFEST. Fırtına, which made our team proud by achieving 5th place in the SUAS Competition, has stood out in missions with its payload release system and precise flight capabilities. As part of TEKNOFEST, it successfully took on the task of deploying the rover named "Köstebek" to a designated area and safely retrieving it. Demonstrating reliable performance in various mission scenarios, Fırtına provides an effective and flexible solution for field operations. With both its design and functionality, it is a vehicle that successfully represents our team's efforts.

TECHNICAL SPECIFICATIONS
  • TAKEOFF WEIGHT 20.42 kg
  • FLIGHT CRUISE SPEED 20 m/s
  • FLIGHT TIME 37 minutes
  • ALTITUDE RANGE 30-120 m
  • BATTERY 40000 mAh
  • TAKEOFF/LANDING AUTONOMOUS
HARDWARE SPECIFICATIONS
  • FLIGHT COMPUTER PIXHAWK CUBE ORANGE+
  • MISSION COMPUTER NVIDIA JETSON ORIN NX 16GB
  • GPS PIXHAWK HERE3+ GPS
  • CAMERA RASPBERRY PI HQ + 35mm LENS
  • MOTOR HOBBYWING XROTOR PRO X8
  • BATTERY TATTU 40000mAh 22.2V 6S 30C LIPO
  • RADIO TELEMETRY RFD900X
  • LIDAR SLAMTECH RPLidar A2M12

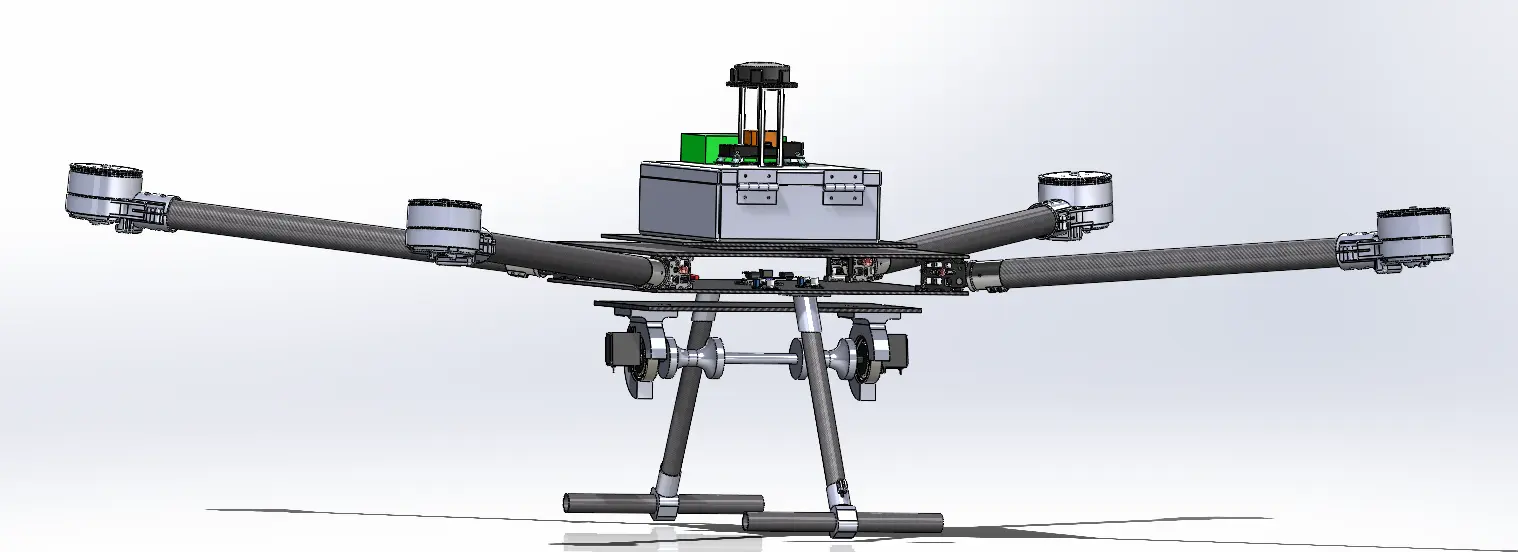

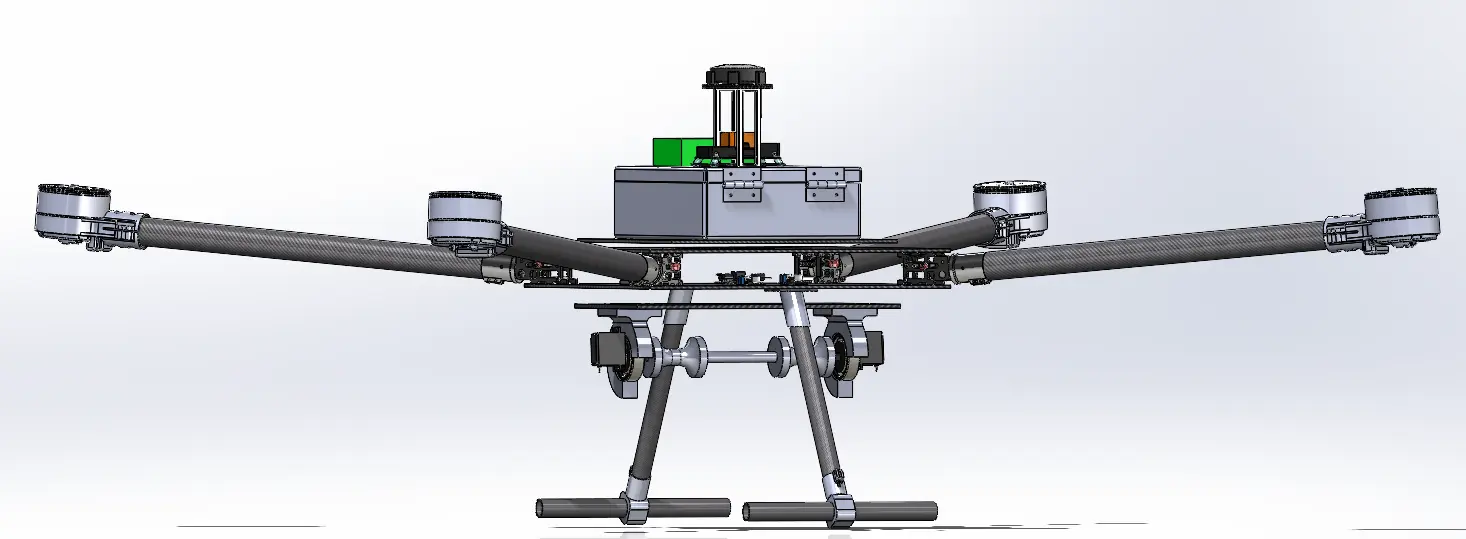

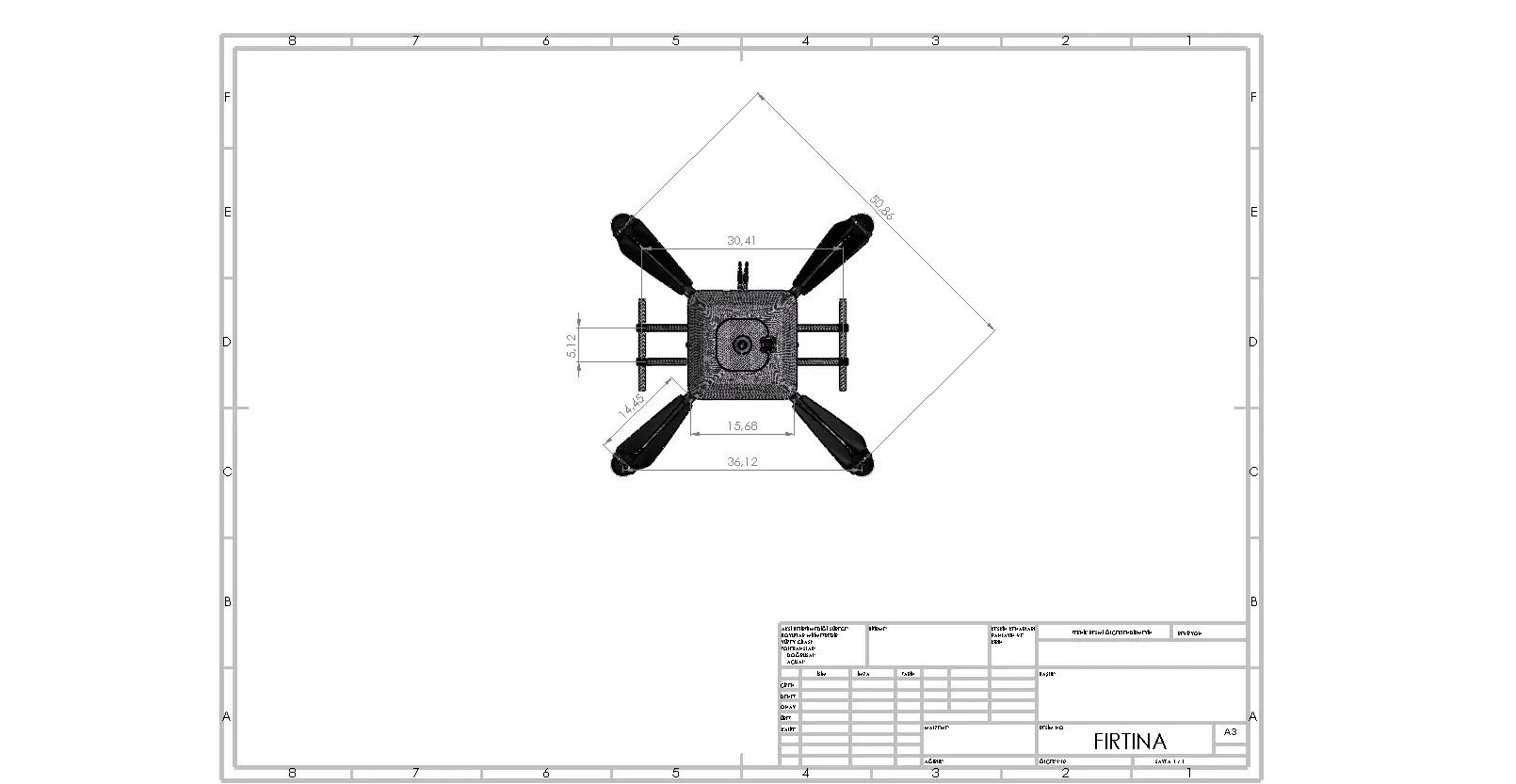

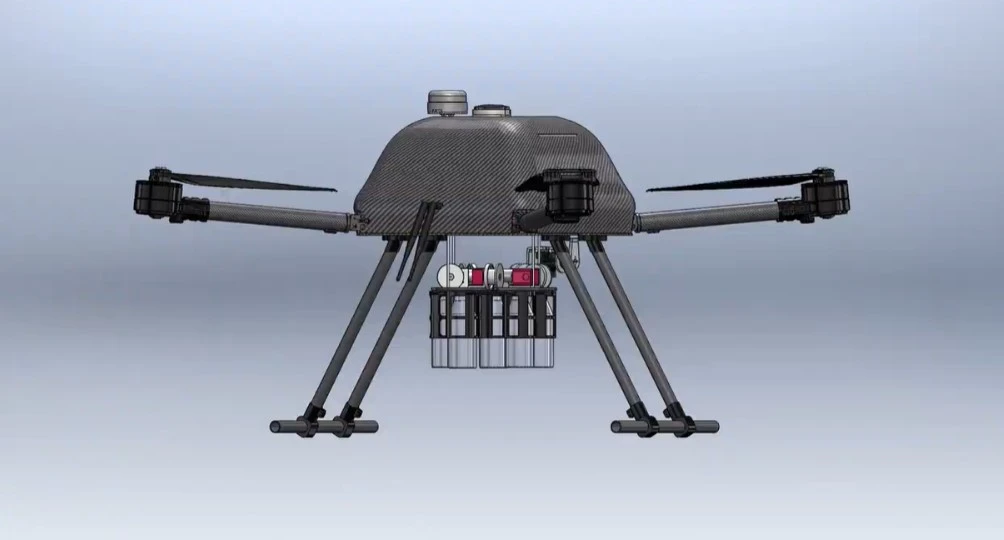

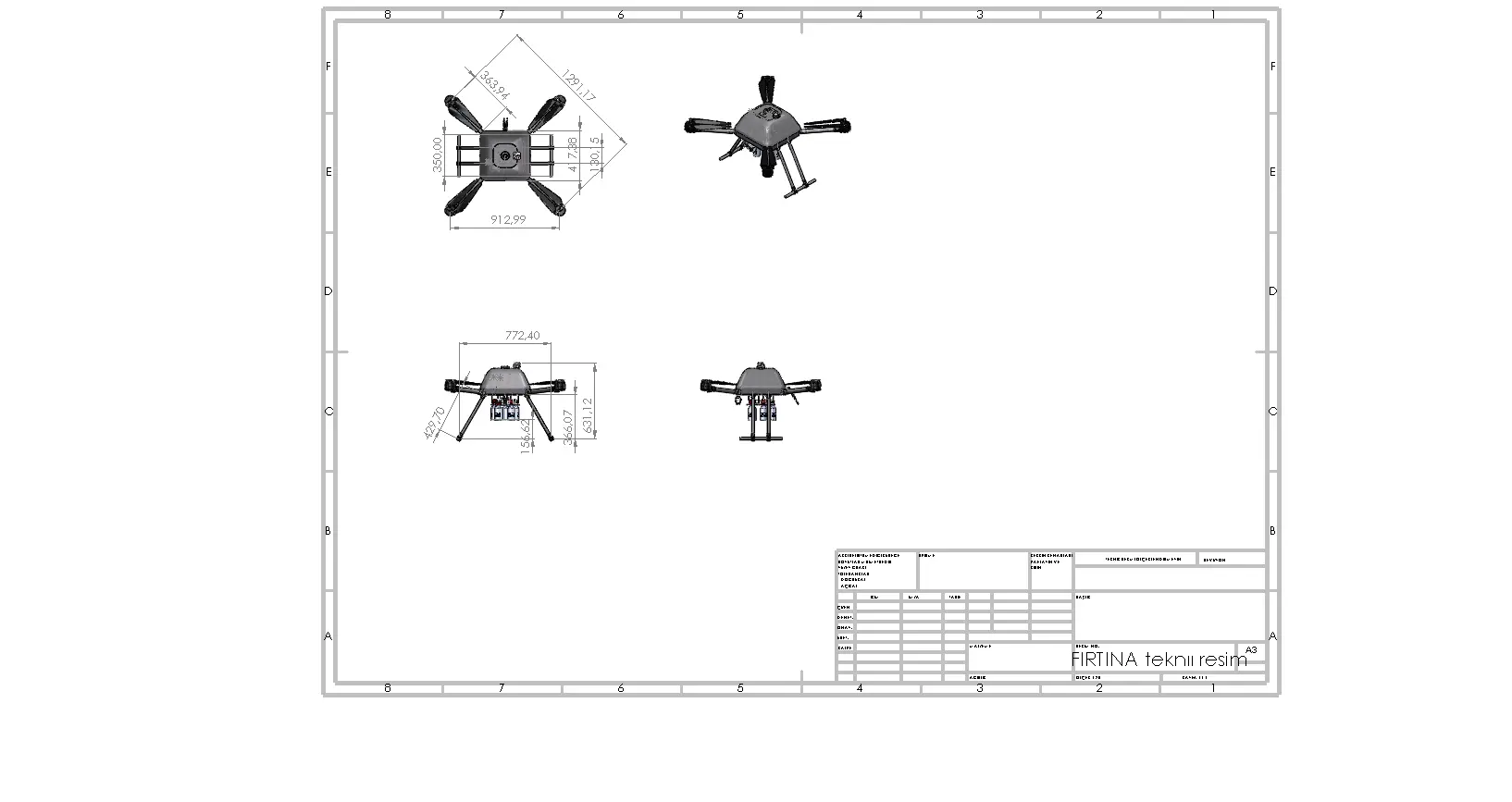

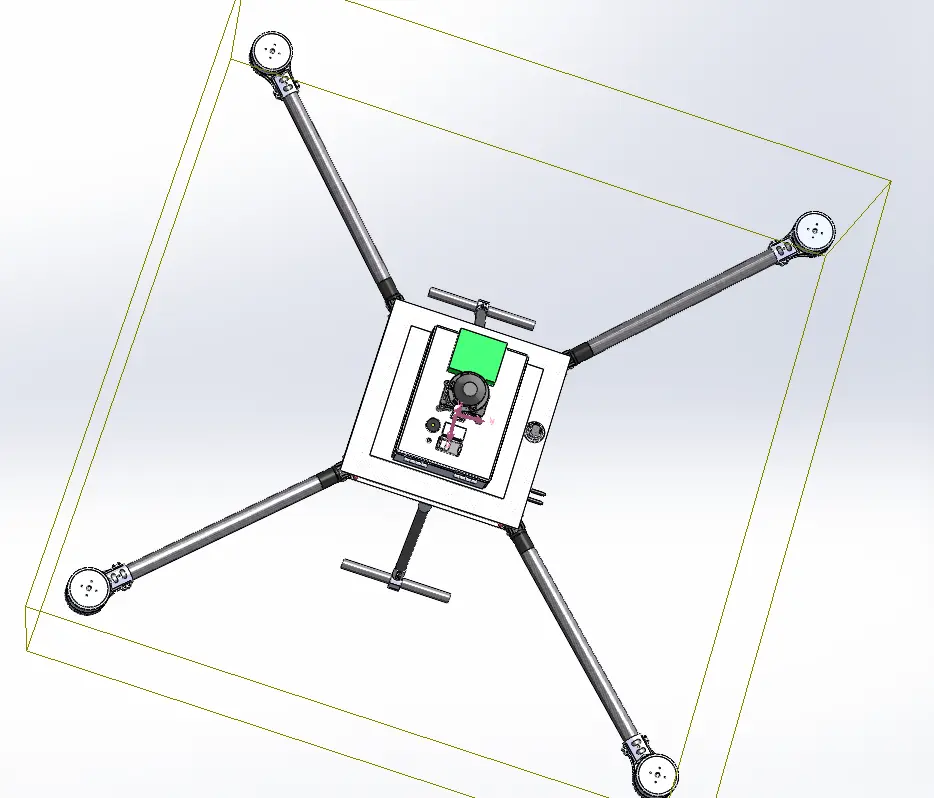

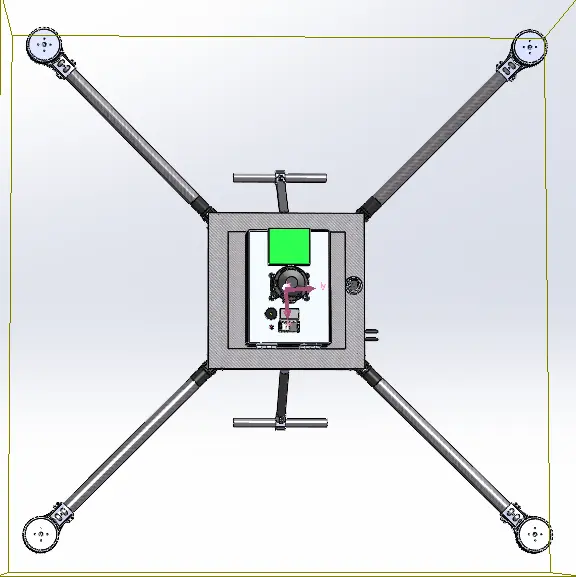

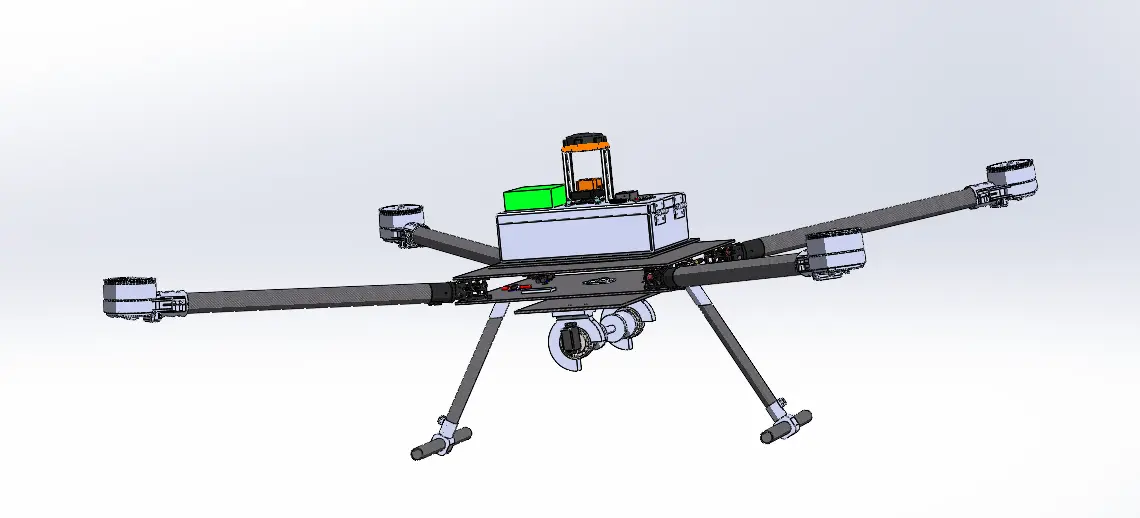

TECHNICAL DRAWINGS AND 3D MODELS

Kart 1
Kart 1
Kart 1
Kart 1
Kart 1
Kart 1
Kart 1

deneme

deneme

Kart 1

deneme

deneme

3D MODEL
