ATLAS

OVERVIEW

ATLAS is our rotary-wing unmanned aerial vehicle (UAV) developed in 2023 for the SUAS Competition and the International TEKNOFEST. By achieving 8th place in the world at SUAS, it made our team proud and marked a significant success. With its payload release system, ATLAS has successfully carried out critical missions, accomplishing important tasks with excellence.

TECHINCAL SPECIFICATIONS

TAKEOFF WEIGHT 18.30 kg
FLIGHT CRUISE SPEED 14 m/s
FLIGHT TIME 34 minutes
ALTITUDE RANGE 30-120 m
BATTERY 32000 mAh
TAKEOFF/LANDING AUTONOMOUS

HARDWARE SPECIFICATIONS

FLIGHT COMPUTER PIXHAWK CUBE ORANGE
MISSION COMPUTER NVIDIA JETSON NANO
GPS PIXHAWK HERE3 GPS
CAMERA SONY A6000 KAMERA
MOTOR HOBBYWING XROTOR PRO X8
BATTERY TATTU 32000mAh 22.2V 6S 30C LIPO
RADIO TELEMETRY RFD900X

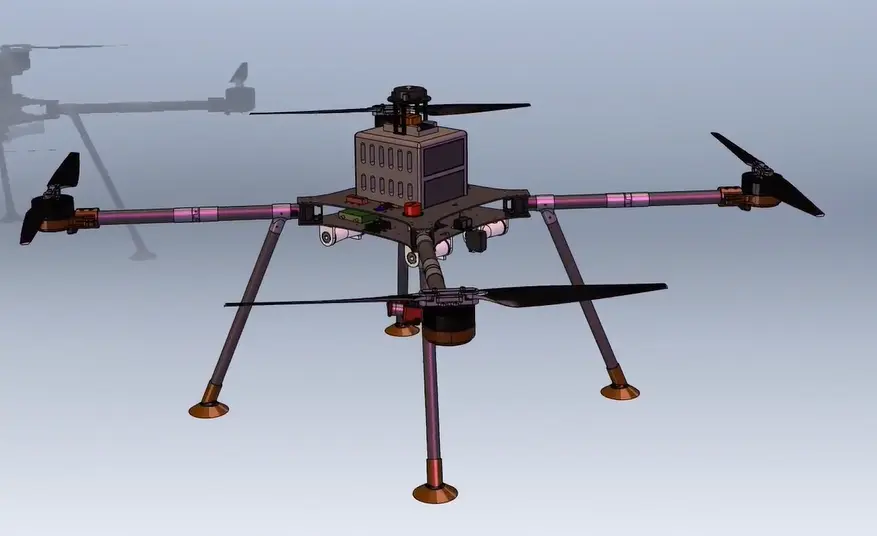

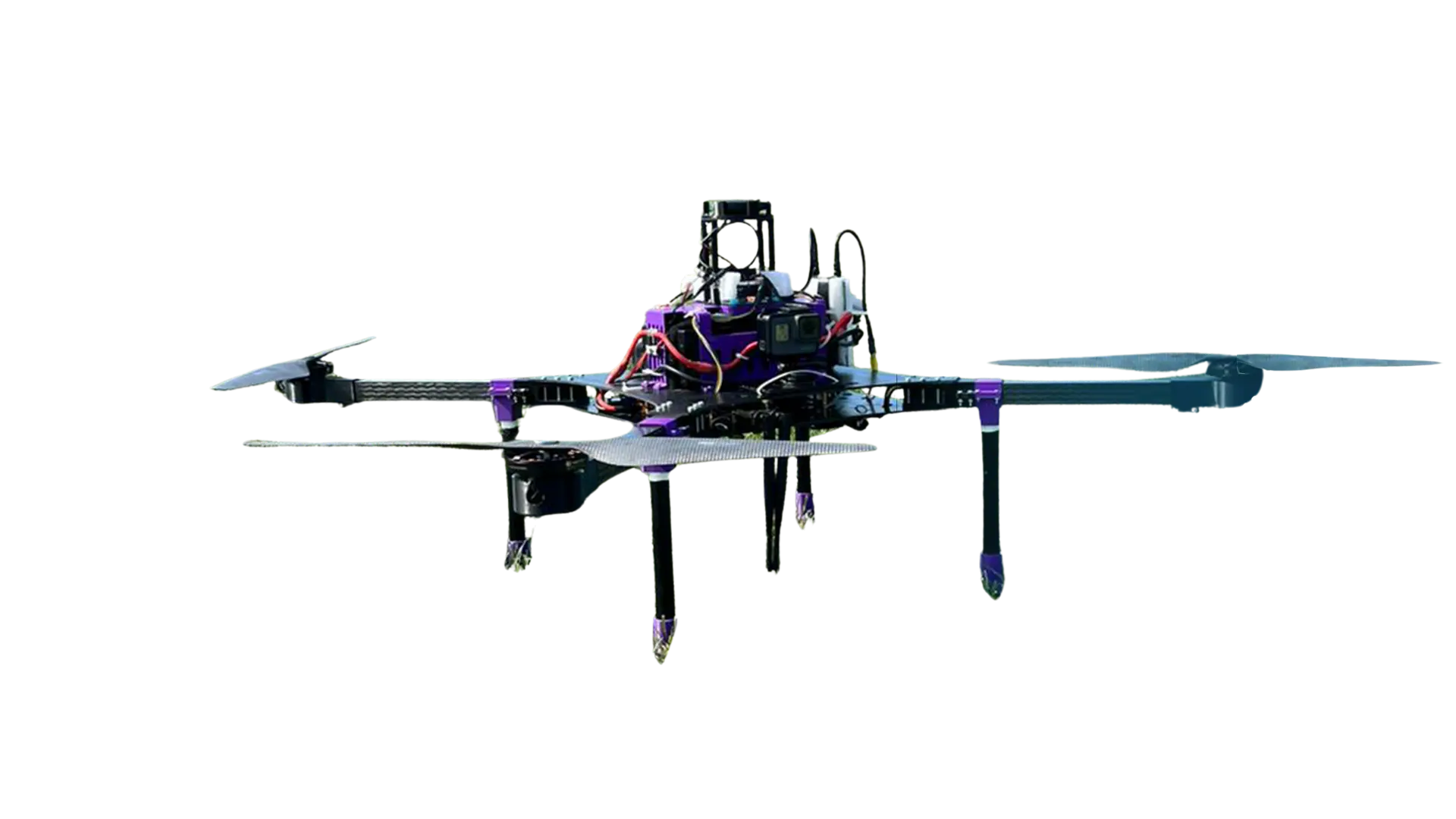

TECHNICAL DRAWINGS AND 3D MODELS
