ALACA

OVERVIEW

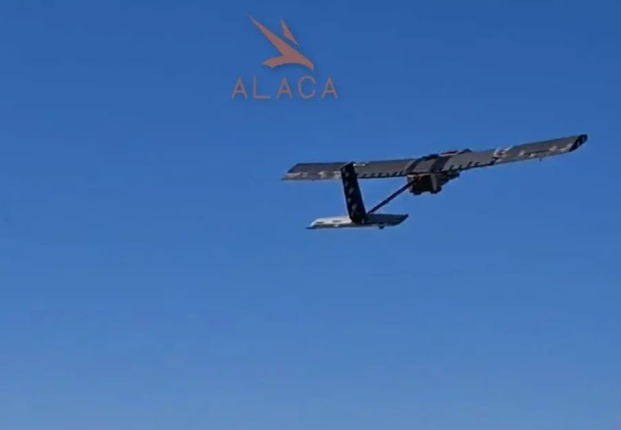

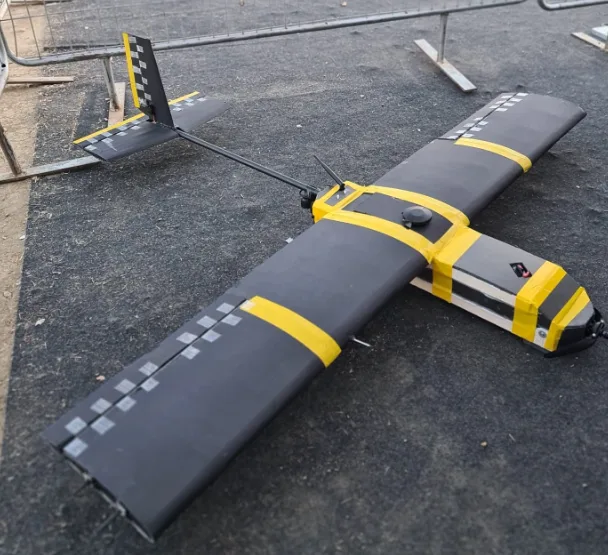

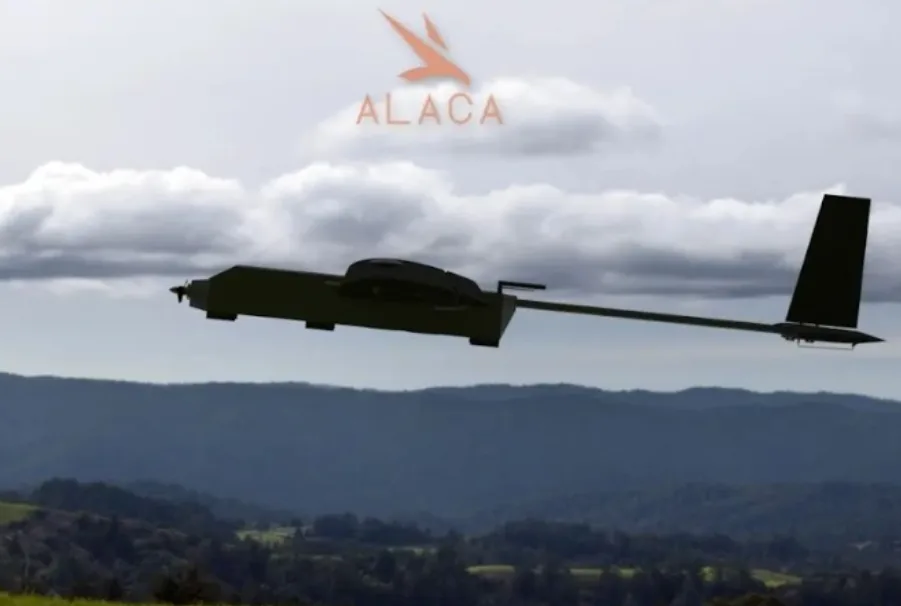

ALACA has a wingspan of 1.7 meters and a length of 1.2 meters, capable of reaching a maximum speed of 16 m/s. Our vehicle has a thrust of 4 kg and can perform flights lasting up to 7.2 minutes. It is capable of carrying out its missions fully autonomously.

TECHNICAL SPECIFICATIONS

TAKEOFF WEIGHT 5 kg
CRUISE SPEED 30 m/s
FLIGHT TIME 8 minutes
ALTITUDE RANGE 5-30 m
BATTERY 3300 mAh
TAKEOFF/LANDING AUTONOMOUS

HARDWARE SPECIFICATIONS

FLIGHT COMPUTER PIXHAWK CUBE BLACK
MISSION COMPUTER NVIDIA JETSON NANO 4GB
GPS PIXHAWK HERE2 GPS
CAMERA PI KAMERA v2.1
MOTOR SUNNYSKY X2826 1080KV
BATTERY LEOPARD 4S 3300 mAh LİPO

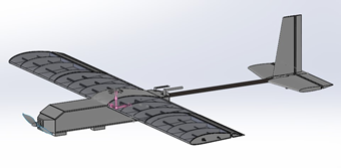

TECHNICAL DRAWINGS AND 3D MODELS
